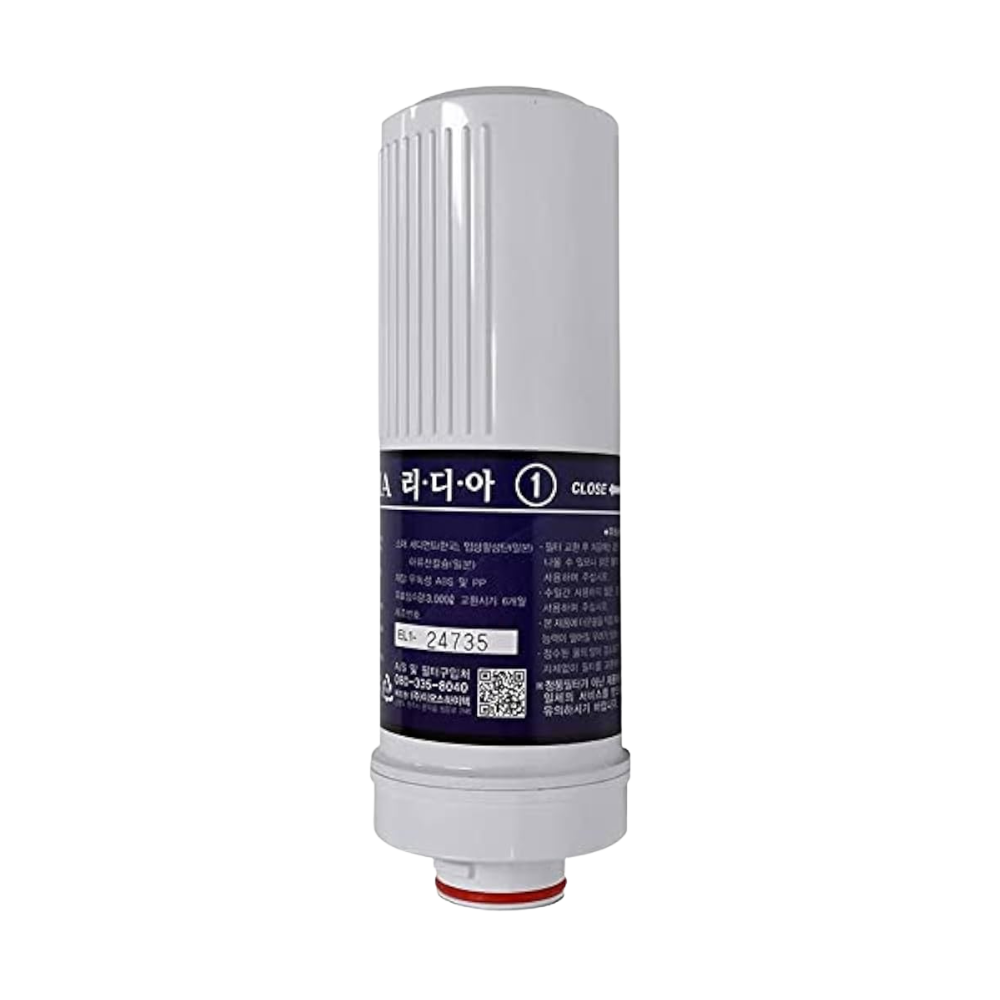

EOS [Revelation II & Platinum] - Filter 1

The EOS Platinum and Revelation II water ionizers use Filter 1, which offers a 7-stage filtration process with a capacity of 4000 liters.

The filter has a mesh size of 0.1µ (micron), ensuring effective removal of contaminants. It is important to note that regional differences in water quality may affect the filtration performance.

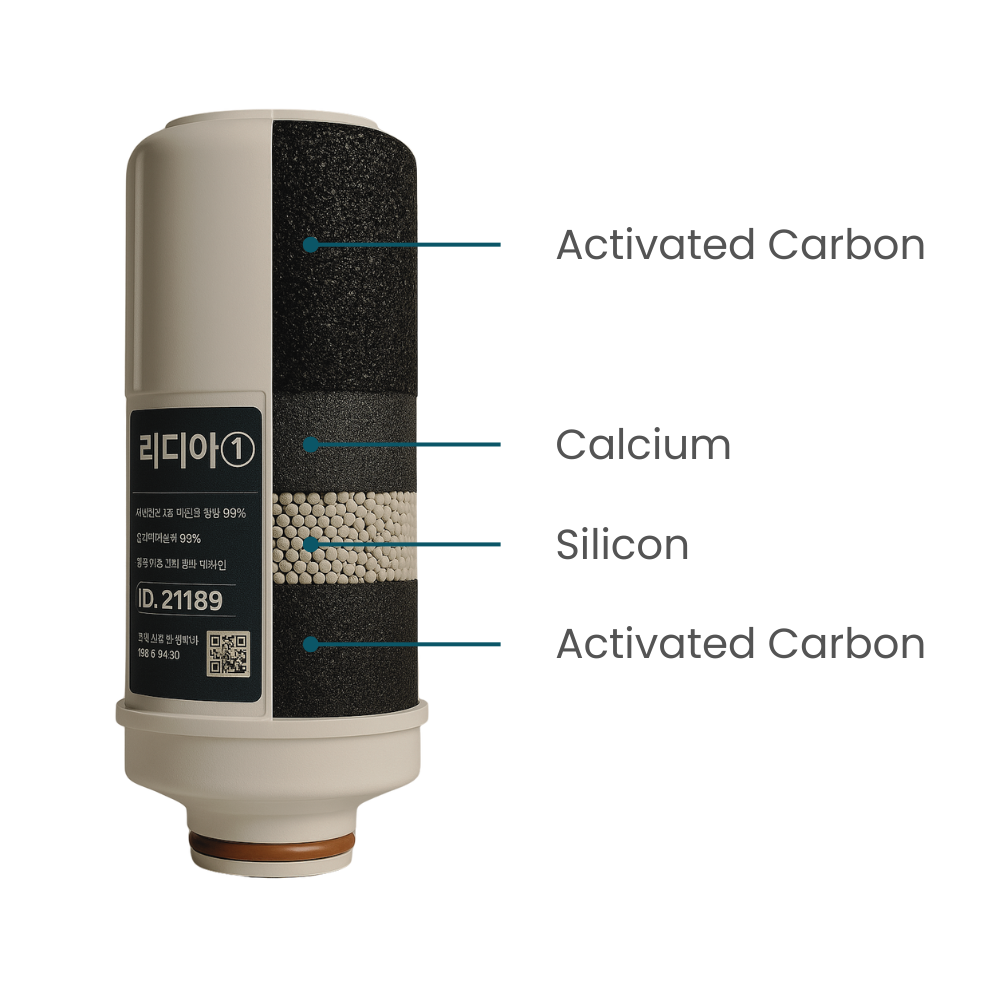

The filtering material used in the filter is made in Korea and consists of the following stages:

1. Antibiotic one-side filter
2. Zeomic
3. Noxious Odor Calcium
4. Active Carbon (with silver added)
5. Sediment filter

When used in combination with Filter 2, these filters have excellent filtration capacity, effectively removing chlorine, heavy metals, bacteria, giardia, and other contaminants. As a result, the water tastes pure and refreshing.

To monitor the filter's remaining capacity, the water ionizer features an LCD screen that indicates when the filter needs to be replaced. It is recommended to have a new filter ready once the remaining capacity reaches the lower end. If the taste and smell of the water are abnormal, it is necessary to replace the filter earlier than its designated capacity. The display will give a signal when the filter is nearing exhaustion, typically at around 70 liters remaining.

Changing the filters is a straightforward process. Here are the steps:

1. Open the back door of the filter compartment.
2. Unplug the filter sensor cable.
3. Unscrew the filter in the direction indicated by the arrows on top of the filter.
4. Pull out the old filter from its filter base.
5. Insert the new filter by pushing it into the filter housing and turning it in the opposite direction as indicated on top of the filter.
6. Reconnect the filter sensor cable.
7. Close the lid of the filter compartment.

After the filter change, the display will show the new capacity of the filter, and you can continue enjoying purified water from your EOS Platinum or Revelation II water ionizer.
